Midwest Rake® launch's the company’s
Precision Application Squeegee System
The first application squeegee that is truly cleanable, reusable and provides unparalleled blade
selection
and precision Wet Film Thickness (WFT) mil delivery.

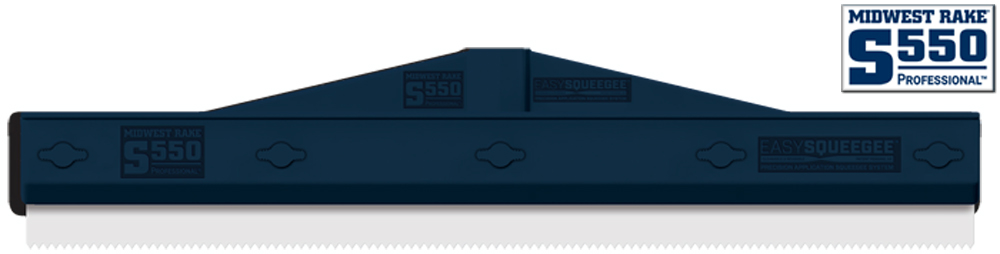

The Easy Squeegee™ frame was engineered with a feature-set that solves the most common
challenges
inherent among current application squeegee designs.
INTELLIGENT BLADE IDENTIFICATION- All blades inscribed with WFT and
WFSR information.
All Easy Squeegee™ blade packaging is color coded for easy identification at the point of purchase and
the blades themselves feature intelligent blade identification with WFT and WFSR information inscribed on the on the blade for sure identification once the blade is out of its packaging.
Additionally, all blades in the system are non-marking and chemical resistant.
SELF-LEVELING BLADES - Accurate and predictable Wet Film Thickness every
time.

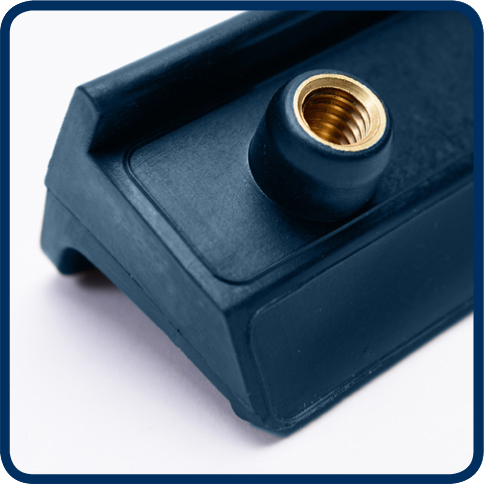

Self-leveling, a current obstacle to precise mil delivery with current application squeegees is solved by the addition of raised screw bosses to the top of the frame allowing for the blade to be intuitively seated on the frame.
SELF-LOCATING BLADES - Designed to provide industry leading accuracy.
The self-locating blade feature ensures consistent blade placement regardless of the operator. The end result, the blade is straight, level and in perfect contact with the floor, every time.

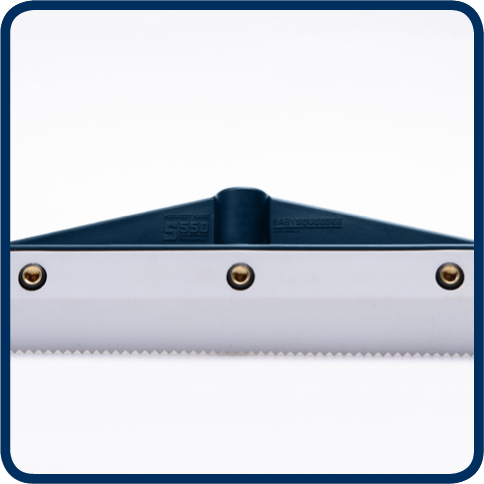

PROTECTED THREADS AND FASTENERS - Eliminates material contact with threads.
Additional frame design enhancements with the Easy Squeegee™ were focused on protecting the fasteners. The Easy Squeegee™ solves the problem of material coating the fasteners by relocating and raising the fasteners to the top of the frame in turn eliminating contact with material on the pull action and minimizing contact on the push action.

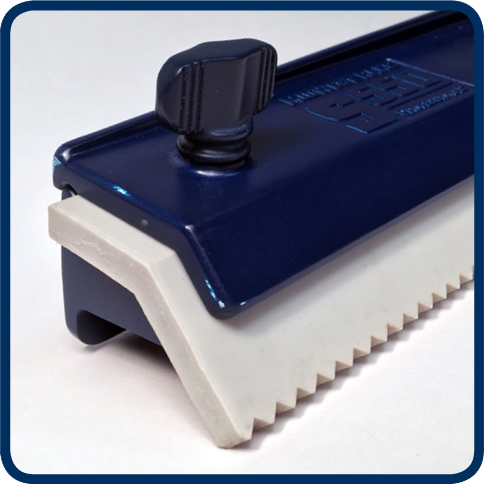

THUMB SCREWS REPLACE NUTS - Features Cured Coatings Release (CCR™) Technology
for cleanability.
LIGHTER FRAME - for better applicator feel and reduced fatigue. The Easy Squeegee™ frame is available in 18” and 26” widths and is standard with a heavy-duty threaded handle adapter and a strong gusseted frame.

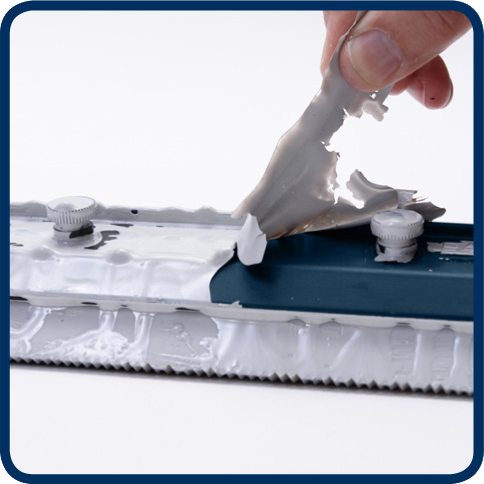

CURED COATINGS RELEASE™ TECHNOLOGY - Ensures the frame is reusable regardless of
the material used.
The Easy Squeegee™ borrows from material science to provide an application squeegee that is truly cleanable and reusable. Cured Coatings Release™ technology enables the squeegee frame to be cleaned by a simple Twist-to-Release™. Thanks to Multi Materials Release™ the most common floor coatings (epoxy, urethanes – single and dual component, polyaspartics and moisture cured urethanes), once dry on the squeegee frame offer the same releasing capabilities.
The Easy Squeegee™ provides industry leading precision, predictability and
versatility when compared to competitive products.
The eight unique engineered
blades provide a level of versatility and job site application options not
currently available
from any competitive application squeegee tool today.
The blade options for the Easy Squeegee™ Precision Application Squeegee System set a new standard for accuracy, predictability and repeatable mil delivery.
BLADE STYLE
BLADE WIDTH
SAMPLE PROJECT APPLICATIONS
18"
19"
26"
27"
FLAT FLEXIBLE
Do you prefer a thinner more flexible blade for your coatings applications? Or do you prefer pulling vs. pushing? The Flat Stiff is a traditional stiff flat blade for general purpose application jobs.
FLAT STIFF
Do you have a large area to coat with a thin film clear epoxy
or urethane topcoat? The Flat Flexible is a slightly longer tapered blade which provides additional flexibility in the blade for superior feedback to the applicator’s hands allowing them to adjust the pressure on the tool according to the task and material being applied.
5-7 WFT MILS
WFSR: 230-320 sq ft / GAL
Tasked with pulling a rapid curing polyaspartic urethane clear-coat over a random flake floor? The 5-7 and 8-12 WFT blades feature a scalloped notch design.
8-12 WFT MILS
WFSR: 133-200 sq ft / GAL
Need to get 200 gallons of 100% solids epoxy down at
10 Mils (160 sq ft / GAL) with an inexperienced work-crew? The 5-7 and 8-12 WFT blades feature a scalloped notch design.
15-20 WFT MILS
WFSR: 80-106 sq ft / GAL

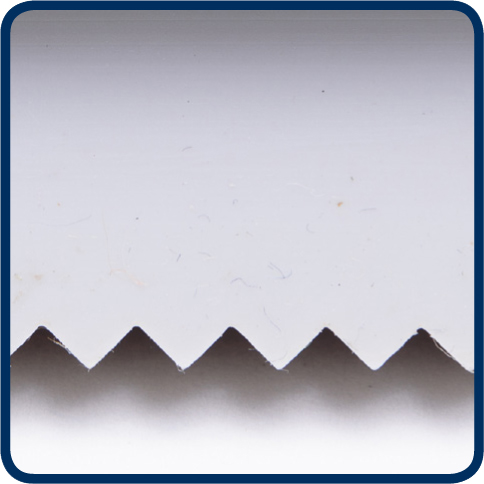

Applying a decorative 100% solids metallic epoxy at 100 sq ft / GAL? V-Notched Easy Squeegee™ System blade for medium-to-heavy applications
25-30 WFT MILS
WFSR: 53-64 sq ft / GAL
Looking to squeegee apply 30 Mils (50 sq ft/ GAL) of silicone roof coating? V-Notched Easy Squeegee™ System blade for medium-to-heavy applications
40-45 WFT MILS
WFSR: 36-40 sq ft / GAL
Are you applying 40 Mils of polyurethane deck coating to
a large parking structure? V-Notched Easy Squeegee™ System blade for medium-to-heavy applications
50-60 WFT MILS
WFSR: 26-32 sq ft / GAL
Need to apply 60+ Mils of an epoxy waterproofing to a
bridge deck? V-Notched Easy Squeegee™ System blade for medium-to-heavy applications
Pre-Order
Easy Squeegee™
18 in Wide Easy Squeegee™
18" Frame ONLY w/ Threaded Handle Adapter
78255
18" Flat Flexible Blade
79850
18" Flat Stiff Blade
79853
18" 5-7 WFT Mils Blade
79856
18" 8-12 WFT Mils Blade
79859
18" 15-20 WFT Mils Blade
79862
18" 25-30 WFT Mils Blade
79865
18" 40-45 WFT Mils Blade
79868
18" 50-60 WFT Mils Blade
79871
26 in Wide Easy Squeegee™
26" Frame ONLY w/ Threaded Handle Adapter
78256
26" Flat Flexible Blade
79851
26" Flat Stiff Blade
79854
26" 5-7 WFT Mils Blade
79857
26" 8-12 WFT Mils Blade
79860
26" 15-20 WFT Mils Blade
79863
26" 25-30 WFT Mils Blade
79866
26" 40-45 WFT Mils Blade
79869
26" 50-60 WFT Mils Blade
79872
Replacement Fasteners for Easy Squeegee™ (Bag of 7)
